Check Valve(API594,API6D)

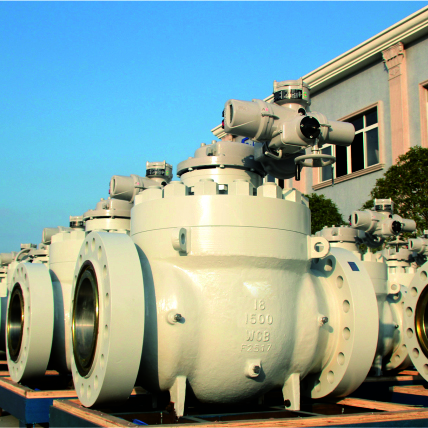

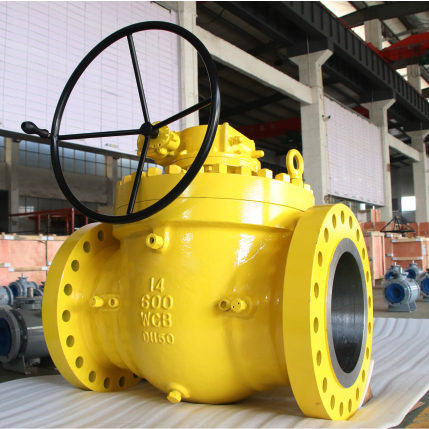

SUNGO series top entry ball alve with uni-body,trunnion mounted ball This type of valve gives convenient of in-ine repair orreplace valve internal components without dismantling it from pipeline.SUNGO top entry ball valves are all fire safe test perAPI 607.
Design Feature:
•Cast steel uni-body(top entry)
•Fire safe design and certified
•Double block &bleed
•Emergency sealant injection
•Cacity pressure self relief
•Blowout-proof stem
•Anti-static
•Optional double piston design
Design Feature:
•Cast steel uni-body(top entry)
•Fire safe design and certified
•Double block &bleed
•Emergency sealant injection
•Cacity pressure self relief
•Blowout-proof stem
•Anti-static
•Optional double piston design
Products Range:
| Size: | 2″~36″ |
| Rating: | ANSI Class 150LB-1500LB |
| Body materials: | WCB,LCB,LCC,CF8,CF8M,CF3,CF3M or Equivalent. |
| Trim: | A105+ENP,13Cr,F304,F316 |
| Operation: | Lever,Gear,Motor,Pneumatic operator |
| Details refer to SUNGO catalogue No.SUNGO-E-BV | |
