Check Valve(API594,API6D)

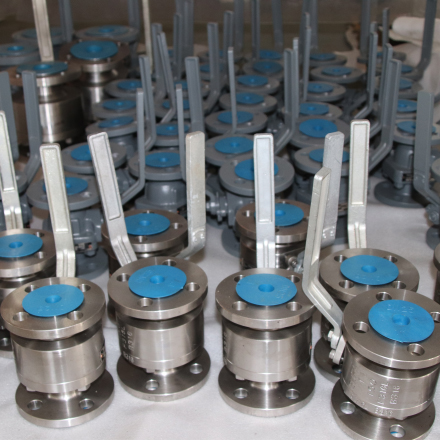

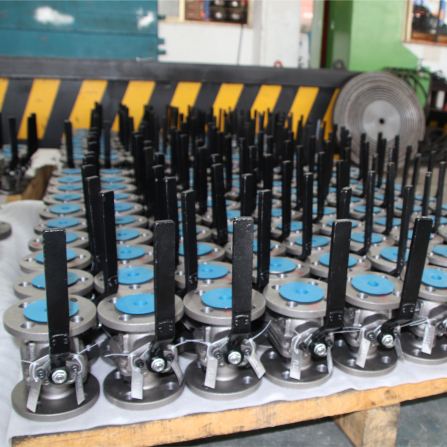

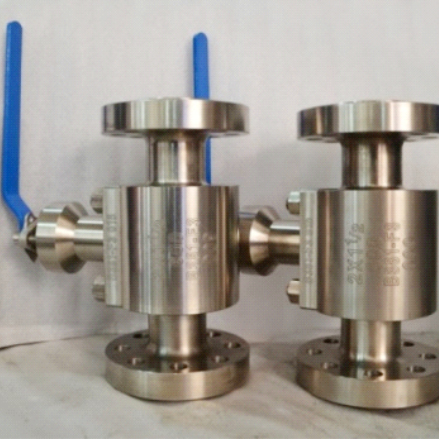

SUNGO series foating ball valves featuring 2-PC spli body side entry or uni body,a very popular design in floating ballvalve.SUNGOoffers 3 main categories:Conventional design covers working temperature-46℃~200℃;Cryogenic design covers working temperature-196℃~-46℃and High performance design covers working temperature 200℃~500℃.Allfre safe test were certified by TUV.
Design Feature:
•Full port or Reduce port
•Fire safe certified
•Blowout-proof stem
•Anti-static
•Low emssion control
•ISO 5211 top flange
•Optional locking device
Design Feature:
•Full port or Reduce port
•Fire safe certified
•Blowout-proof stem
•Anti-static
•Low emssion control
•ISO 5211 top flange
•Optional locking device
Products Range:(Uni body design)
| Size: | 1/2″~8″ |
| Rating: | ANSI 150LB,300LB |
| Body materials: | Carbon steel,Stainless Steel |
| Trim: | A105+ENP,13Cr,F304,F316 |
| Operation: | Lever,Gear,Pneumatic operator |
| Details refer to SUNGO catalogue No.SUNGO-E-BV | |
Products Range:(2-PC design)
| Size: | 1/2″～12″ |
| Rating: | ANSI Class 150LB,300LB |
| Body materials: | WCB,LCB,LCC,CF8,CF8M,CF3,CF3M or Equivalent. |
| Trim: | A105+ENP,13Cr,F304,F316 |
| Operation: | Lever,Gear,Pneumatic operator |
