Check Valve(API594,API6D)

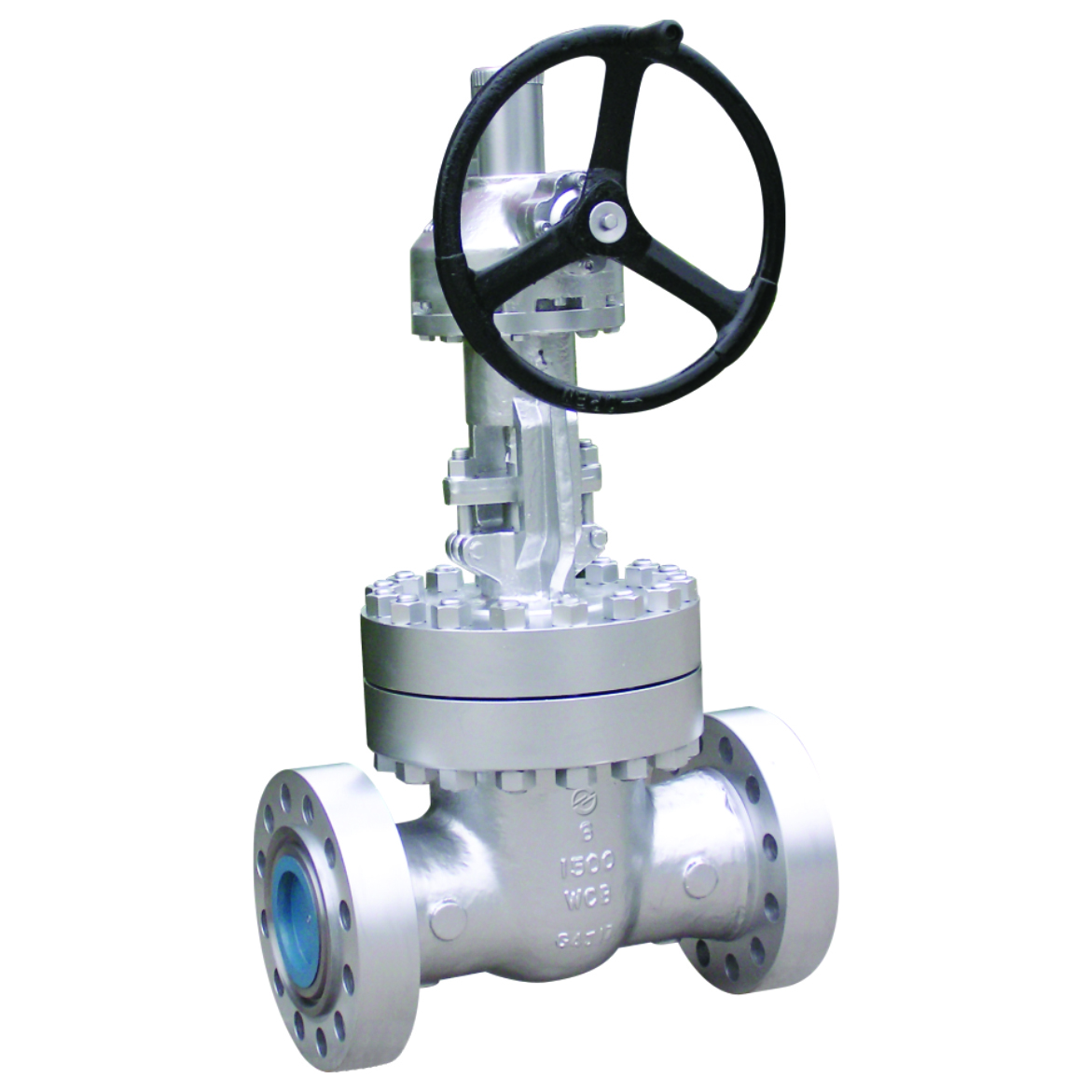

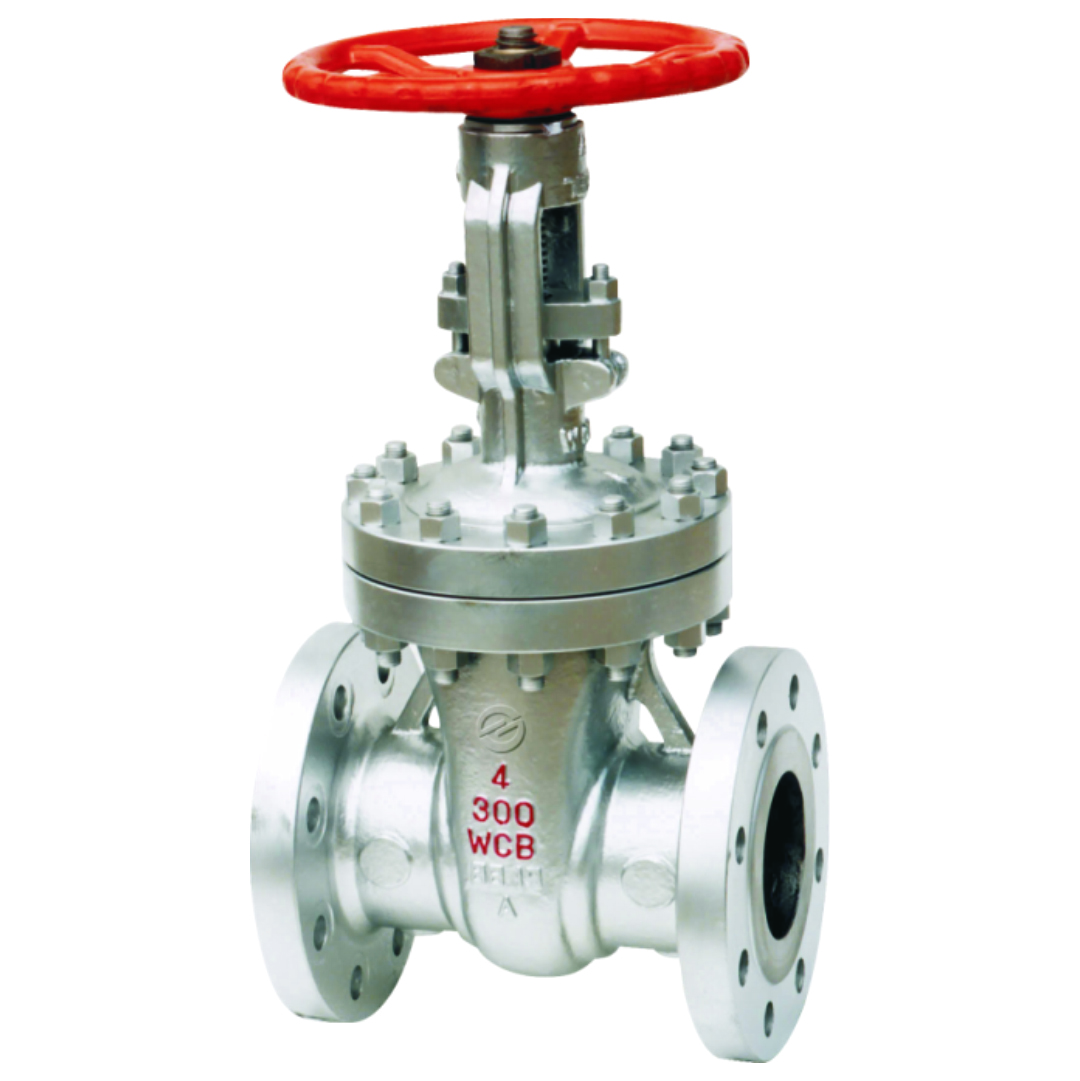

This line of valves is one of SUNGO main products.SUNGO cast steel gate valves are designed and manufactured to providemaximum service life and dependability.All gate valves are full ported and meet the design requirements ofAPI-600 and ANSIB16.34.Valves are available in a complete range of body/bonnet materials and trims.
Design Feature:
•Meet design requirements of ANSI B16.5,B16.34,B16.10,B16.25(for NPS≤24),MSS SP-44(for NPS>24),APl-600 or API6D
•Inspection and Test:accord with API 598
•Full range of body/bonnet &trim materials
•Choice of solid,flex or split wedge design
•Back seating design
•Upset forged T-head stem design
•OS&Y construction
•Renewable seat rings–seal welded
•Full port design
•Full length wedge guides
•Optional impact hand wheel
•Optional lengthen stem
Design Feature:
•Meet design requirements of ANSI B16.5,B16.34,B16.10,B16.25(for NPS≤24),MSS SP-44(for NPS>24),APl-600 or API6D
•Inspection and Test:accord with API 598
•Full range of body/bonnet &trim materials
•Choice of solid,flex or split wedge design
•Back seating design
•Upset forged T-head stem design
•OS&Y construction
•Renewable seat rings–seal welded
•Full port design
•Full length wedge guides
•Optional impact hand wheel
•Optional lengthen stem
Products Range:
| Size: | NPS2″-96″(DN50~DN2400) |
| Rating: | ANSI Class 150LB-2500LB,PN2.5~PN420 |
| Materials: | WCB,LCB,CF8,CF8M,CF3,CF3M,WC6,WC9,C5,C12 or Equivalent. |
| Actuation: | Handwheel,Gear,Electric Actuator |
| Details refer to SUNGO catalogue No.SUNGO-E-GGCV | |
